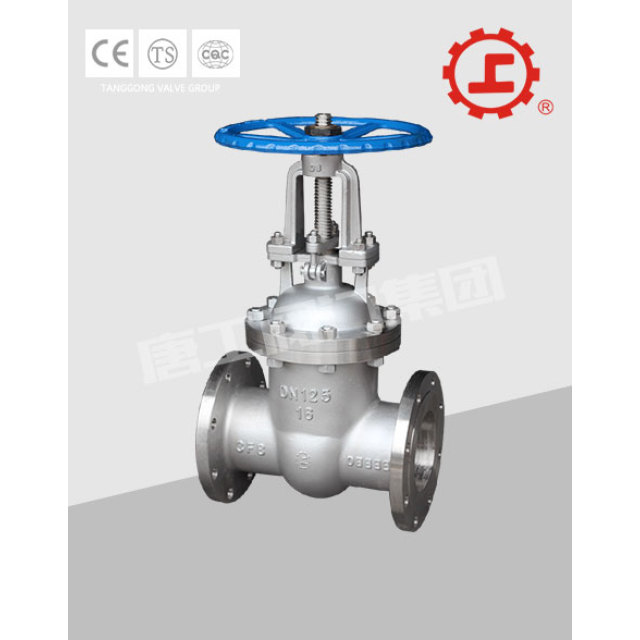

a.Austenitic stainless steel has good corrosion resistance to oxidizing acid medium;
b.Medium flow through the stainless steel gate valves does not change its flow direction, small fluid resistance;
c.The movement direction of the gate is perpendicular to the flow direction of the medium;
d.The flow direction of the medium is unrestricted, free from disturbance and pressure reduction. The medium can flow in any direction from both sides of the gate valve to achieve the purpose of use.
e.The gate is vertically placed in the valve body, with short structure length.
f.Good sealing performance, small erosion on sealing surface when fully opened.
Design and manufacturing: GB/T12234
Face to face: GB/T12221
Type of connection: HG/T20592-20605, GB/T9112-9124
Test standard: JB/T9092, GB/T13927
Nominal size：1/2”-50”
Pressure/ Temperature level: GB/T12224
Drive method: Manual, worm gear, pneumatic, electric, hydraulic etc..
Pressure: PN2.5Mpa~PN42.0Mpa
Model: Z40Y, Z40W, Z41Y, Z41W
Performance parameter
|
Test pressure |
Parameters |
|||||
|
PN16 |
PN25 |
PN40 |
PN65 |
PN100 |
PN100 |
|
|
Nominal pressure (Mpa) |
1.6 |
2.5 |
4.0 |
6.4 |
10 |
16 |
|
Shell strength test (Mpa) |
2.4 |
3.75 |
6.0 |
9.6 |
16 |
24 |
|
Seal test (Mpa) |
1.76 |
2.75 |
4.4 |
7.04 |
11 |
17.6 |
|
Working pressure at nominal temperature (Mpa) |
≤1.6 |
≤2.5 |
≤4.0 |
≤6.4 |
≤10 |
≤16 |
Material for main parts
|
Material of valve |
ZG08Cr18Ni9 |
ZG08Cr18Ni10 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
Working temperature (℃) |
-46-200℃ |
-46-200℃ |
-46-200℃ |
-46-200℃ |
-46-200℃ |
-46-200℃ |
|
Applicable medium |
Nitrate acid |
Nitrate acid |
Nitrate acid |
Nitrate acid |
Nitrate acid |
Nitrate acid |
